Morgan brought back the AC20! Similar to its big brother, the Morgan AC20 is a deceptively simple, hand wired in the USA, all-tube amplifier that is capable of producing a myriad of early 60s British AC tones – but that is just the beginning.


The included power level control allows you to dial in just the right amount of volume without sacrificing your tone the way some master volumes do.


The AC20  head comes with her 1x12 cabinet loaded with a Celestion cream back 16ohms


1 Channel

Offers the well-known British Class A sounds of the early 60s

High dynamic range

Power: 0.25 - 20 Watt

Morgan Power Scaling for infinitely variable power without sound loss

Preamp tubes: 2x 12AX7

Output stage tubes: 2x EL84

Loudspeaker equipment: 1x 12" Celestion G12H75 Creamback

Open housing

Power, cut and volume controls

Bright & Bass cut switch

Input (6.3 mm jack)

Dimensions (W x D x H): 508 x 254 x 508 mm (20" x 10" x 20")

Weight: 18,1 kg (40 lbs)

Hand-wired in USA


Plugging into the AC20 and you will instantly notice the familiar chime and compression of the Class A EL84 driven output section. Instantly U2, Tom Petty, Queen and most of praise and worship tones will be right there at your fingertips.


Like all Morgan amps the AC20 was designed with the pedalboard player in mind. This amp loves all pedals and was designed in a matter where even modulation pedals like reverb and delay sound best in front of the amp.


The amplifier’s extreme touch-sensitivity will allow you to coax clean tones even at the highest of gain settings.


To quote Keith Armstrong (Chief Engineer at Mix LA) “It is impossible to get a bad sound out of this amp!”


The hand crafted in USA head shell is made of void-less Baltic birch ply wrapped in our twilight finish, a proprietary custom ballistic vinyl covering that is vulcanized to the wood to ensure long lasting durability.


The Power Level control is a big part of the magic of the AC-20.


Most guitarists today have spent large sums of money and even more amounts of time working on their pedal boards.


Most pedals are not designed to be used with a tube amp on “1”. They were designed to interact with the amplifier at or near the point at which it begins to break up. That is why an overdrive pedal is called an “over” drive. It is driving the amp over that point. Unfortunately that volume can be too loud for most live applications.


The Power Level control on the AC20 solves this.


Think of conventional master volumes as a spigot on a garden hose, they choke off the signal to the power section of the amp to a usable level. Most conventional master volumes also affect the way your pedals interact with your amp.


The Power Level control behaves like a zoom lens. It limits the size of the output signal that can be produced by the output tubes. It does NOT choke the signal down and therefore behaves identical as if the amp were running at full volume. This means that you can choose the power that you need, anything from ¼ of a watt to 20 watts.

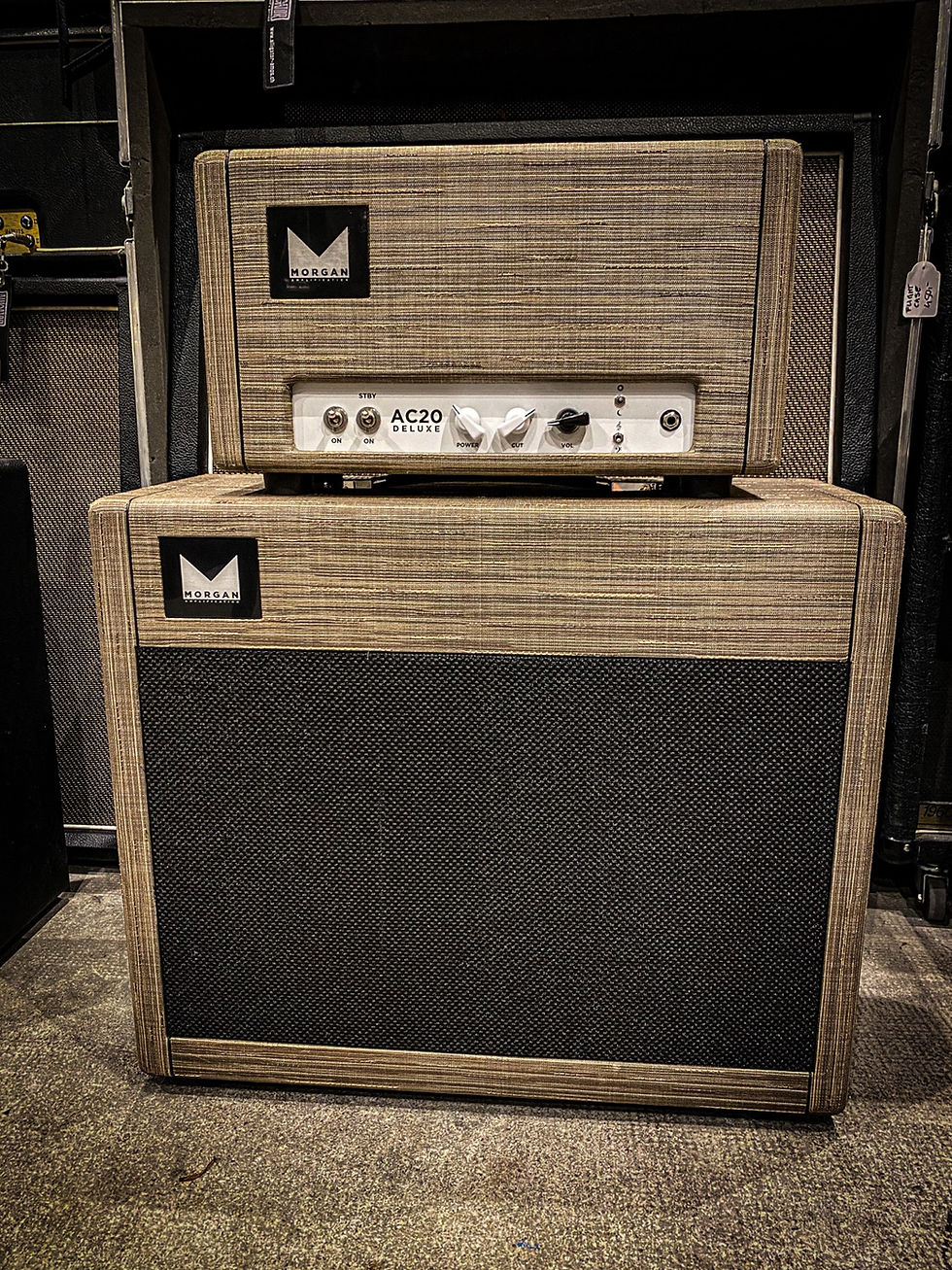

Morgan AC20 head and cabinet 1x12
